Wood

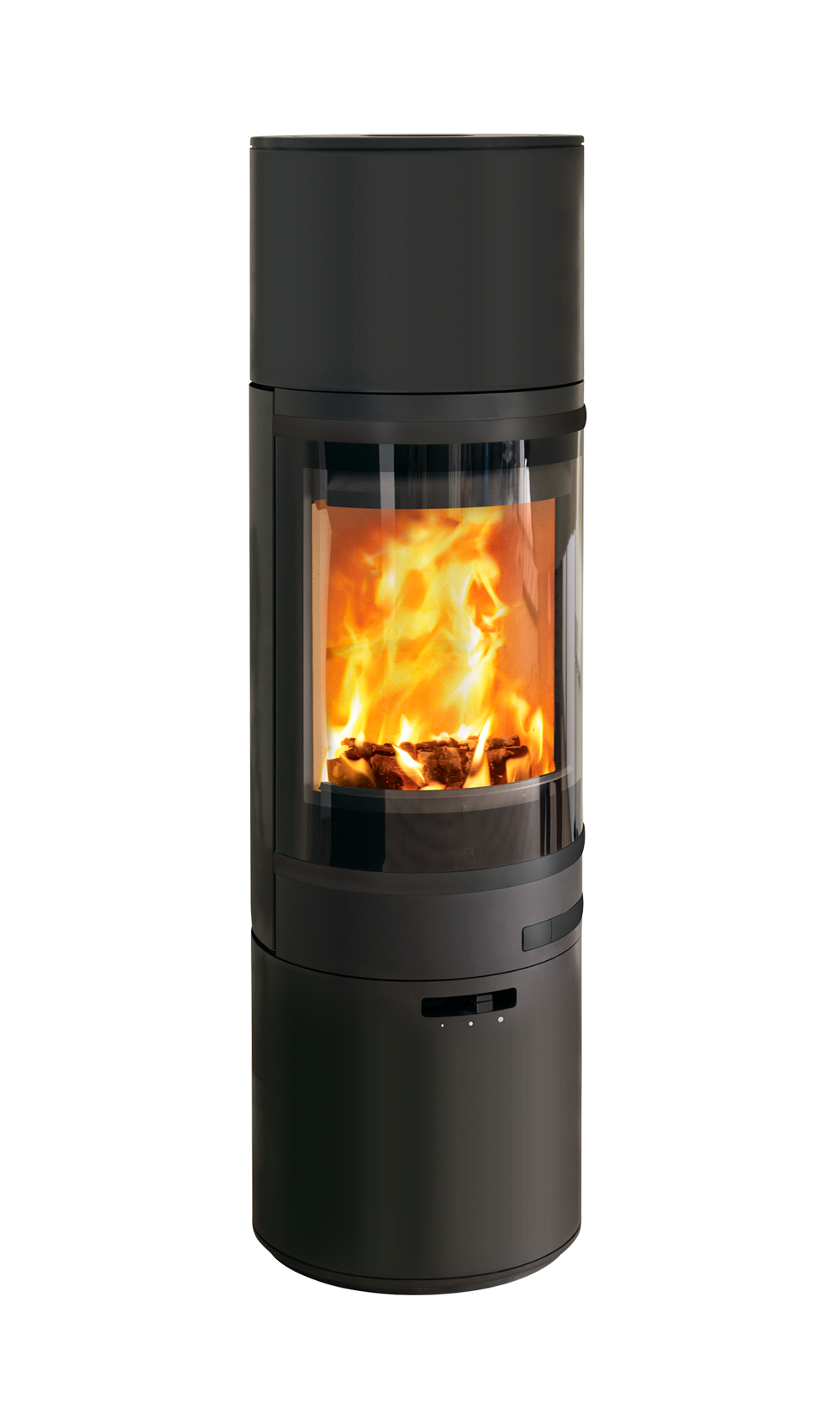

SCAN 85-3

Perfect proportions

Description

Scan 85 Maxi is a model with high base and high top. For this model, you can choose Scan Heat Storage system enabling you to enjoy the heat for up to 12 hours after wood was last added to the fire.

Elegant sliding door
Unique flame picture
Red Dot Award Winning design

Size

Height: 1,864 mm

Width: 520 mm

Depth: 520 mm

Colors

Black paint (Selected)

Red Dot

Technical Specifications
Documents

Specifications

Height 1864 mm
Width 520 mm
Depth 520 mm
Weight 229 kg
Log size up to 50 cm
Flue outlet Ø 148 mm
Flue exit options Top / Rear

Nom output 8.0 kW
Efficiency 78 %
Heating capacity up to 160 m²
CO Emission 0.06 %
Dust Product Emission 7 mg/Nm³
NOx Emission 87 mg/Nm³
OGC Emission 32 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes
Ash solution Yes
Ridding grate Yes

Statement terms (229 KB)

Product dimensions (318.42 KB)

Exploded view and spareparts (348.04 KB)

Spare parts (646.82 KB)

Declaration of Performance (69.55 KB)

Declaration of Conformity (253.4 KB)

Ecolabel datasheet (34.68 KB)

Ecolabel (26.79 KB)

Data sheet (54.61 KB)
