Wood Icon Wood

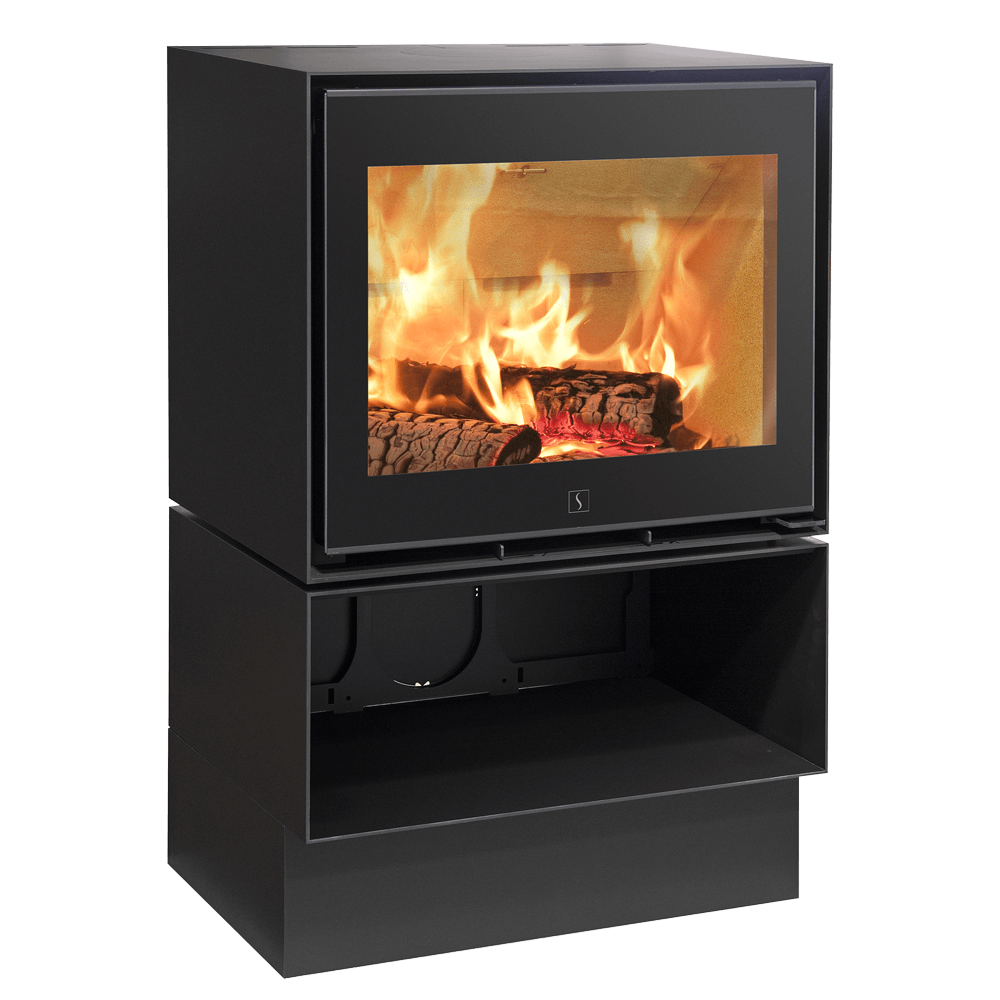

SCAN 1003 BOX VE

Customizable and unique

Description

Create your wood stove from a variety of combinations: version with pyres of different sizes or without pyres, with or without bases! Personalize your Scan 1003 by adjusting the modules according to your interior, your desires and your needs. This designer wood stove combines aesthetics and practicality. The pyres initially intended for the storage of your logs were also thought of as decorative elements. Frame, books, objects will be welcome.

  • Integrated storage
  • Black painted steel fireplace
  • Modular, adapts to any interior

Size

Height: 572 mm

Width: 649 mm

Depth: 479 mm

Colors

Black paint (Selected)
Closed combustion
Closed combustion

    Specifications

  • Height 572 mm

  • Width 649 mm

  • Depth 479 mm

  • Weight 149 kg

  • Log size up to 50.00 cm

  • Flue outlet Ø 150.00 mm

  • Flue exit options Top / Rear

  • Min output 3.0 kW

  • Nom output 7.2 kW

  • Efficiency 81 %

  • Heating capacity cubic up to 340 m³

  • Closed combustion Yes

  • Clean burn Yes

  • External air intake Yes
