SCAN 67 1300 New Product

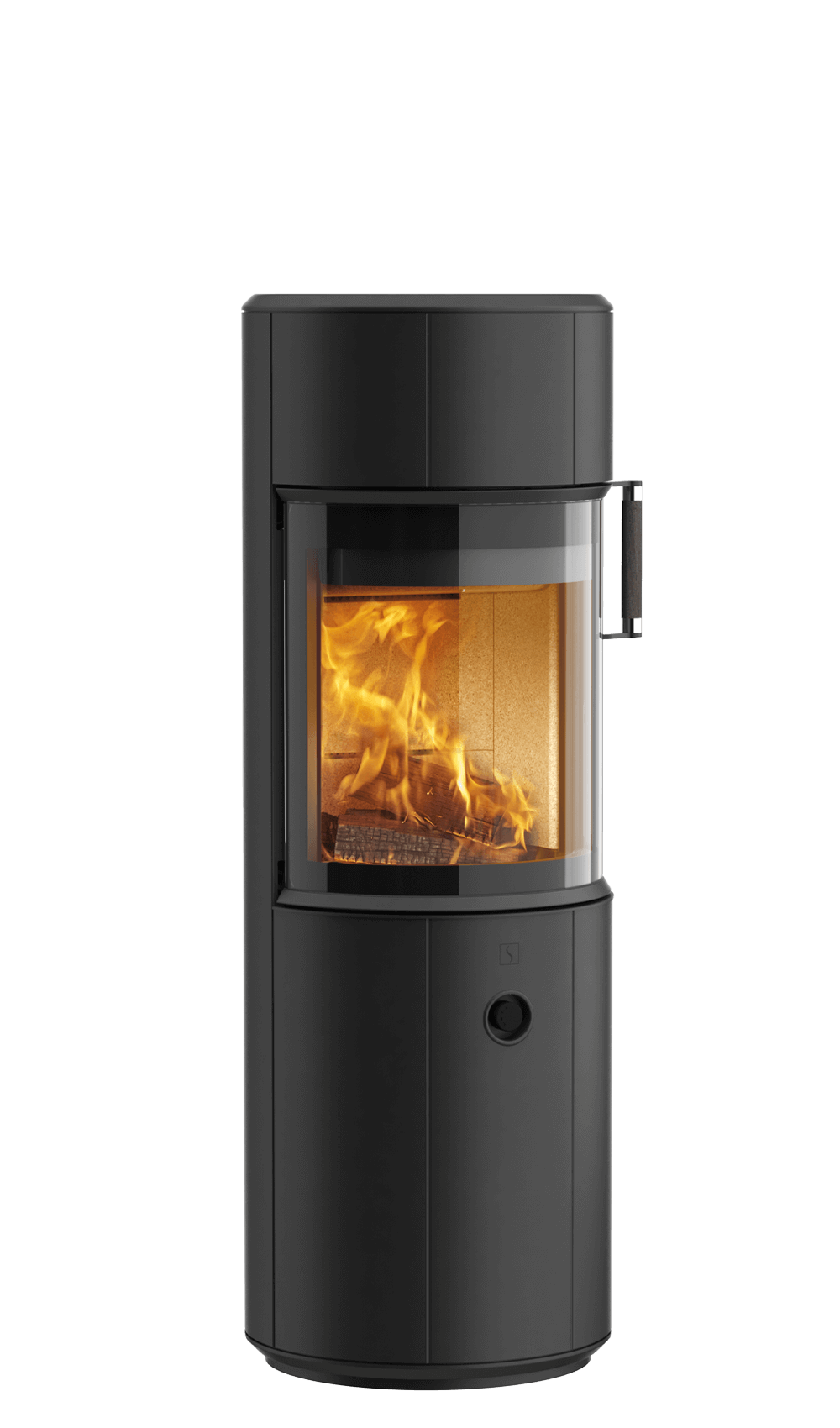

Danish designed fireplace with smart air control

Description

Danish design is all about sustainability, simplicity and functionality. The D-shape design and curved panoramic glass give the fireplace a round appearance, but the advantage is it can stand closer to the wall. The black oak handle stays cool when the fireplace is hot and can easily be replaced to match the interior scheme; with a choice of 2 lengths and 3 colours. It is easy to remove the ash, which collects in a practical ash pan. As part of our sustainability focus, we have developed Zensoric technology that controls the air flow to the fireplace to ensure maximum fuel efficiency and the least possible impact on the environment. If you want to maximise the heat from your fireplace, you can have an extra heat storage mass fitted inside the top.

Danish designed fireplace with practical details
Zensoric controls the air flow – good for the environment and firewood usage
Round fireplace that takes up little space thanks to its flat back

Size

Height: 1,300 mm

Width: 450 mm

Depth: 407 mm

Technology

Colors

Black paint (Selected)

Clean burn

Closed combustion

Zensoric

Technical Specifications
Documents

Specifications

Height 1300 mm
Width 450 mm
Depth 407 mm
Weight 114 kg
Log size up to 35 cm
Flue outlet Ø 148 mm
Flue exit options Top / Rear

Nom output 5.0 kW
Efficiency 76 %
CO Emission 0.06 %
Dust Product Emission 30 mg/Nm³
NOx Emission 99 mg/Nm³
OGC Emission 38 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes
Ash solution Yes
