Wood

SCAN 66-1 WALL

Flames are not square

Description

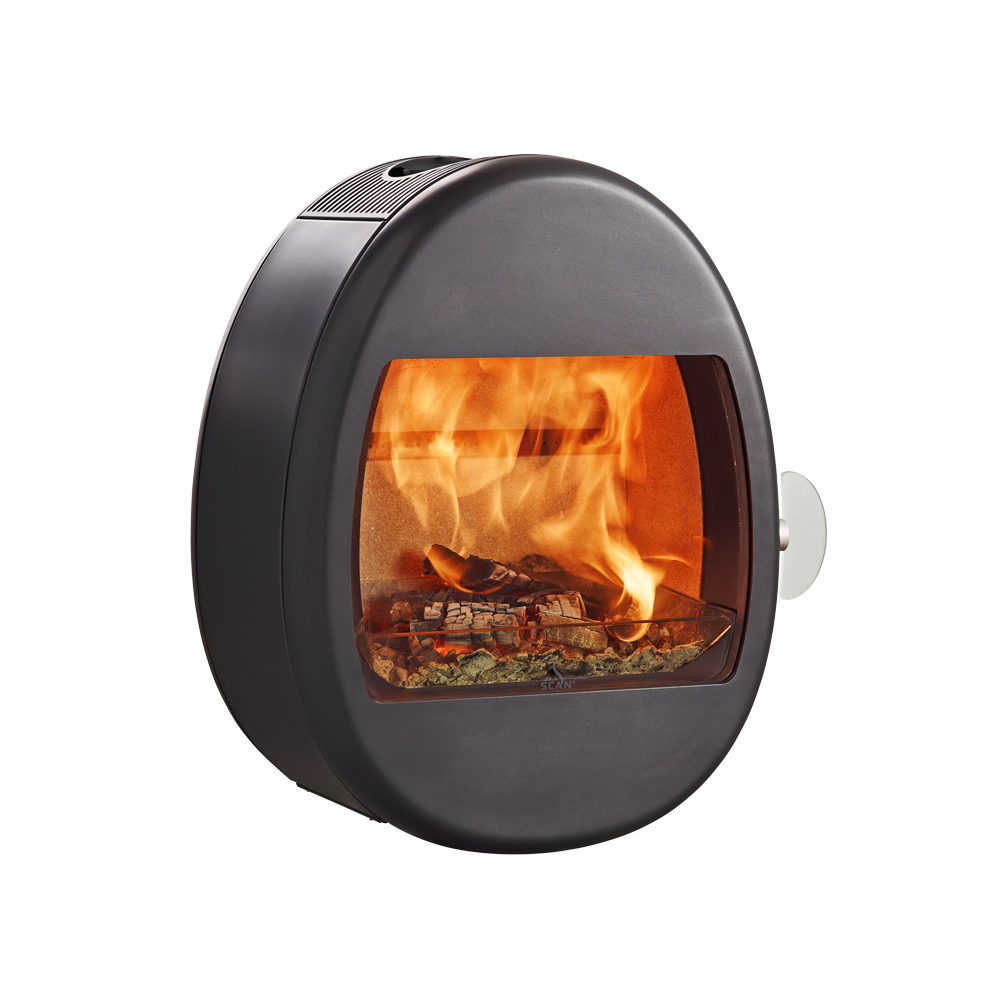

Scan 66-1 is the 66 series wall hung model. The discrete wall fitting gives the impression that the stove is floating against the wall.

Wall fitting
Handle and air controls in glass
Prepared for closed combustion

Size

Height: 630 mm

Width: 481 mm

Depth: 337 mm

Colors

Black paint (Selected)

Clean burn

Closed combustion

Closed combustion

Technical Specifications
Documents

Specifications

Height 630 mm
Width 481 mm
Depth 337 mm
Weight 90 kg
Log size up to 33 cm
Flue outlet Ø 148 mm
Flue exit options Top / Rear

Nom output 5.2 kW
Efficiency 78 %
Heating capacity up to 120 m²
CO Emission 0.03 %
Dust Product Emission 28 mg/Nm³
NOx Emission 86 mg/Nm³
OGC Emission 34 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes
Ash solution Yes

NEW - Installation- and User Manual (9.41 MB)

Installation- and User Manual (8.96 MB)

Installation manual (2.19 MB)

NEW - Statement terms (613.9 KB)

Statement terms (241.7 KB)

Product dimensions (191.14 KB)

Exploded view and spareparts (430.17 KB)

NEW - Declaration of Performance (353.88 KB)

Declaration of Performance (70.66 KB)

Declaration of Conformity (381.8 KB)

Ecolabel datasheet (29.55 KB)

Ecolabel (929.77 KB)

Data sheet (47.47 KB)
